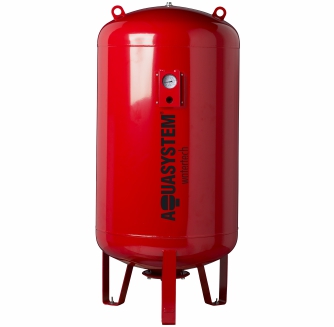

Pressure tanks with replaceable membrane 16 bar- Working temperature
- External finish color
- Rubber membrane
Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
Model | H Height | ⌀ Diameter | Maximum working pressure | Standard precharge pressure | Connection |
---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
---|
VBV750 | 1900 | 750 | 16 | 4 | 2 ” |
VBV1000 | 2180 | 800 | 16 | 4 | 2 ” |
VBV1500 | 2360 | 960 | 16 | 4 | 2 ” |
VBV2000 | 2520 | 1100 | 16 | 4 | 2 ” |
VBV3000 | 2760 | 1200 | 16 | 4 | DN 65 |
VBV4000 | 3100 | 1450 | 16 | 4 | DN 80 |
