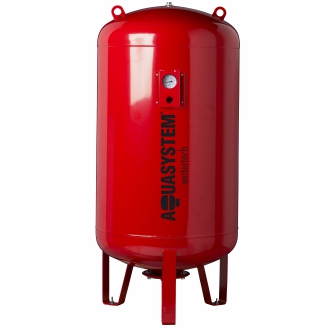

Pressure tanks with replaceable membrane 16 bar- Working temperature
- External finish color
- Rubber membrane

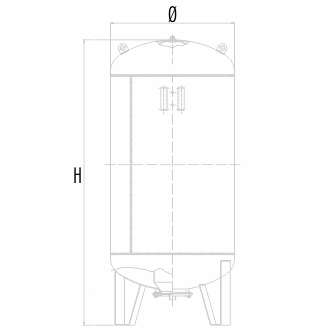

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
Model | H Height | ⌀ Diameter | Maximum working pressure | Standard precharge pressure | Connection |
---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
---|
VBV5000 | 3645 | 1450 | 16 | 4 | DN 80 |
VBV10000 | 5750 | 1600 | 16 | 4 | DN 80 |
