Pressure tanks with replaceable membrane 16 bar- Working temperature
- External finish color
- Rubber membrane

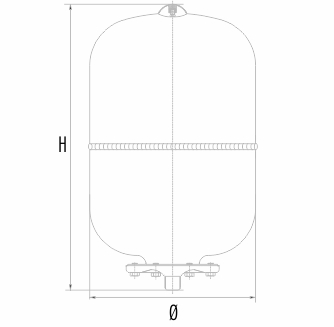

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| VB8 | 310 | 200 | 16 | 2 | ¾ ” |
| VB18 | 430 | 270 | 16 | 2 | ¾” |
| VB24 | 483 | 270 | 16 | 2 | 1” |
| VB35 | 440 | 365 | 16 | 2 | 1” |
