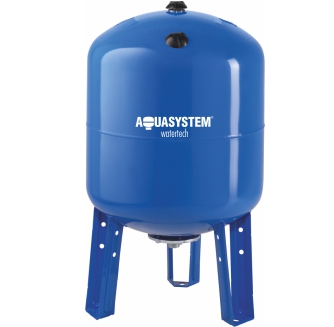

Pressure tanks with replaceable membrane 16 bar- Working temperature
- External finish color
- Rubber membrane

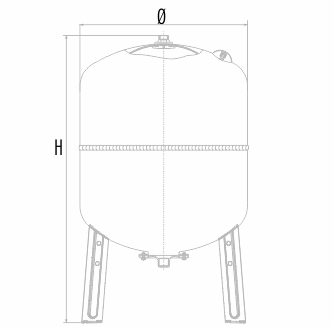

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| VBV50 | 720 | 365 | 16 | 2 | 1” |
| VBV60 | 808 | 365 | 16 | 2 | 1” |
| VBV80 | 810 | 415 | 16 | 2 | 1” |
| VBV100 | 849 | 495 | 16 | 2 | 1” |
| VBV150 | 975 | 550 | 16 | 2 | 1” |
| VBV200 | 1085 | 600 | 16 | 2 | 1¼” |
| VBV300 | 1240 | 650 | 16 | 2 | 1¼” |
| VBV500 | 1490 | 750 | 16 | 2 | 1¼” |
