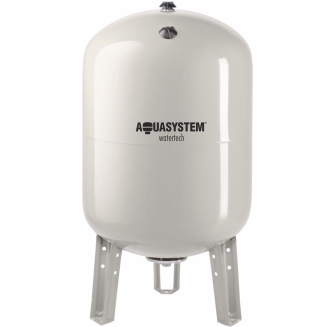

Expansion vessels for heating systems- Working temperature
- External finish color
- Rubber membrane

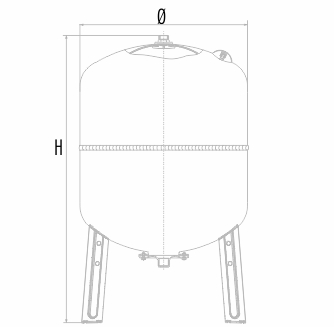

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| VSV50 | 582 | 365 | 10 | 2.5 | ¾ ” |
| VSV80 | 717 | 415 | 10 | 2.5 | 1” |
| VSV100 | 675 | 495 | 10 | 2.5 | 1” |
| VSV150 | 790 | 550 | 10 | 2.5 | 1” |
| VSV200 | 1085 | 600 | 10 | 2.5 | 1” |
| VSV300 | 1212 | 650 | 10 | 2.5 | 1” |
| VSV500 | 1438 | 750 | 10 | 2.5 | 1 ¼ ” |
