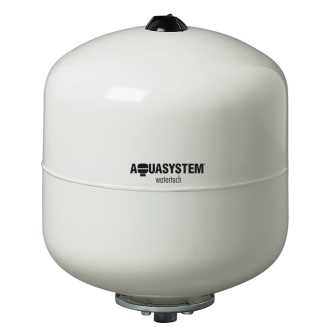

Expansion vessels for heating systems- Working temperature
- External finish color
- Rubber membrane

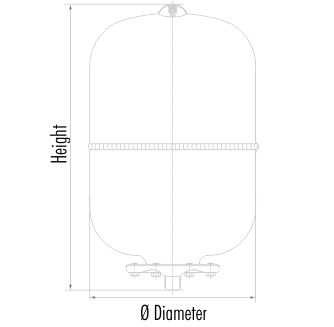

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| VS8 | 316 | 200 | 10 | 2.5 | ¾ ” |
| VS12 | 295 | 280 | 10 | 2.5 | ¾ ” |
| VS18 | 430 | 280 | 10 | 2.5 | ¾ ” |
| VS24 | 483 | 280 | 10 | 2.5 | ¾ ” |
| VSV35 | 450 | 365 | 10 | 2.5 | ¾ ” |
