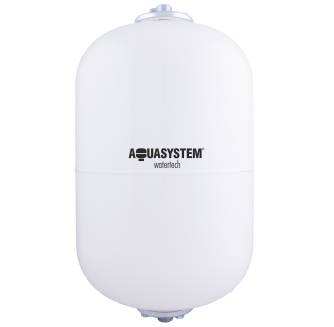

Expansion vessels for heating systems- Working temperature
- External finish color
- Rubber membrane

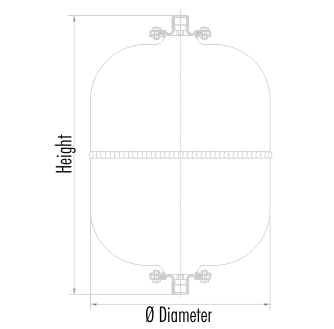

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| VSI12 | 325 | 280 | 10 | N/D | 2 X ¾ ” |
| VSI18 | 435 | 280 | 10 | N/D | 2 X ¾ ” |
| VSI24 | 510 | 280 | 10 | N/D | 2 X ¾ ” |
