Expansion vessels with replaceable membrane for closed heating systems- Working temperature
- External finish color
- Rubber membrane

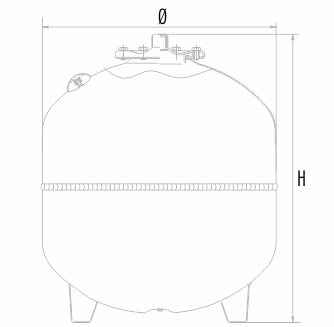

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| VRV35 | 450 | 365 | 8 | 1.5 | ¾ ” |
| VRV50 | 582 | 365 | 8 | 1.5 | ¾ ” |
| VRV60 | 668 | 365 | 8 | 1.5 | ¾ ” |
| VRV80 | 717 | 415 | 8 | 1.5 | 1” |
| VRV100 | 675 | 495 | 8 | 1.5 | 1” |
| VRV150 | 790 | 550 | 8 | 1.5 | 1” |
