Expansion vessels with replaceable membrane for closed heating systems- Working temperature
- External finish color
- Rubber membrane

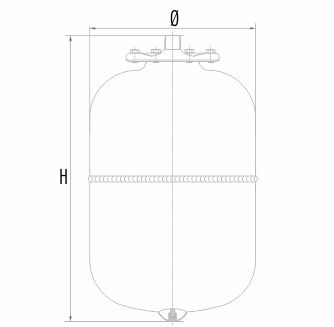

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| VR5 | 300 | 160 | 8 | 1.5 | ¾ ” |
| VR8 | 316 | 200 | 8 | 1.5 | ¾” |
| VR12 | 295 | 280 | 8 | 1.5 | ¾ ” |
| VR18 | 430 | 280 | 8 | 1.5 | ¾” |
| VR24 | 483 | 280 | 8 | 1.5 | ¾ ” |
| VR35 | 440 | 365 | 8 | 1.5 | ¾ ” |
| VR50 | 585 | 365 | 8 | 1.5 | ¾” |
