Expansion vessels with replaceable membrane for closed heating systems- Working temperature
- External finish color
- Rubber membrane

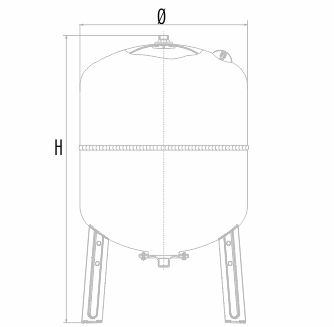

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| VRV200 | 1085 | 600 | 8 | 1.5 | 1” |
| VRV250 | 1051 | 650 | 8 | 1.5 | 1 ” |
| VRV300 | 1212 | 650 | 8 | 1.5 | 1” |
| VRV400 | 1198 | 750 | 8 | 1.5 | 1 ¼ ” |
| VRV500 | 1438 | 750 | 8 | 1.5 | 1 ¼ ” |
| VRV600 | 1634 | 750 | 8 | 1.5 | 1 ¼ ” |
