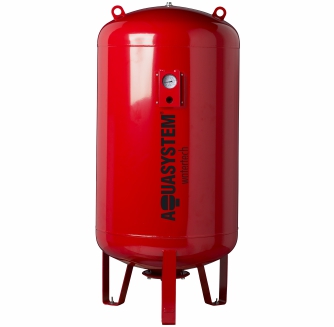

Pressure tanks with replaceable membrane- Working temperature
- External finish color
- Rubber membrane

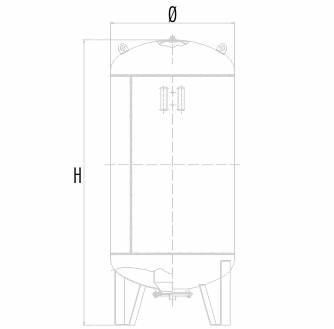

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| VAV750 | 1900 | 750 | 10 | 4 | 2 ” |
| VAV1000 | 2180 | 800 | 10 | 4 | 2 ” |
| VAV1500 | 2360 | 960 | 10 | 4 | 2 ” |
| VAV2000 | 2520 | 1100 | 10 | 4 | 2 ” |
| VAV3000 | 2760 | 1250 | 10 | 4 | Dn65 |
| VAV4000 | 3100 | 1450 | 10 | 4 | Dn80 |
