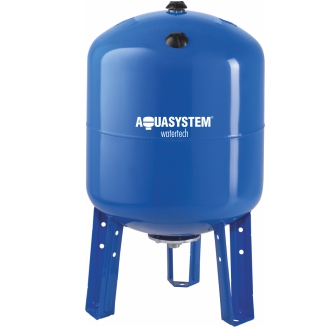

Pressure tanks with replaceable membrane- Working temperature
- External finish color
- Rubber membrane

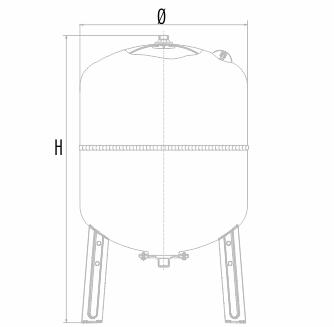

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| VAV50 | 720 | 365 | 10 | 1.5 | 1” |
| VAV60 | 808 | 365 | 10 | 1.5 | 1” |
| VAV80 | 856 | 415 | 10 | 1.5 | 1” |
| VAV100 | 855 | 495 | 10 | 1.5 | 1” |
| VAV150 | 975 | 550 | 10 | 1.5 | 1” |
