Pressure tanks with replaceable membrane- Working temperature
- External finish color
- Rubber membrane

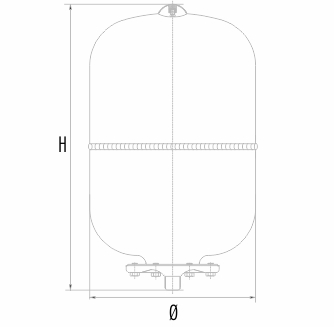

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| VA5 | 300 | 160 | 10 | 1.5 | 3/4” |
| VA8 | 316 | 200 | 10 | 1.5 | 3/4” |
| VA12 | 295 | 280 | 10 | 1.5 | 3/4” |
| VA18 | 430 | 280 | 10 | 1.5 | 3/4” |
| VA24 | 483 | 280 | 10 | 1.5 | 1” |
| VA35 | 440 | 365 | 10 | 1.5 | 1” |
