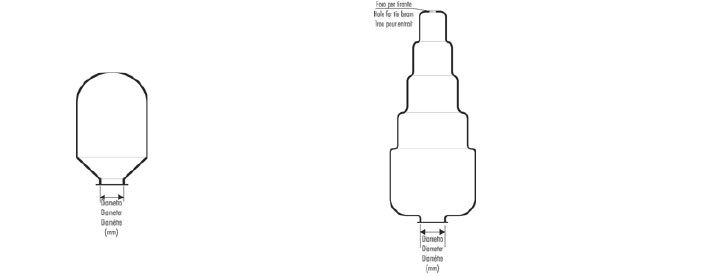

Technical drawing

Code	Membrane	⌀ Diameter	Usable	With hole
	rubber	(mm)	for models	for tie beam
ME008S	EPDM HT	45	VS8	NO
ME012S	EPDM HT	45	VS12	NO
ME018S	EPDM HT	45	VS18	NO
ME024S	EPDM HT	80	VS24	NO
ME035S	EPDM HT	80	VSV35	NO
ME050S	EPDM HT	80	VSV50	NO
ME080S	EPDM HT	80	VSV60 VSV80	NO
ME100S	EPDM HT	80	VSV100	NO
ME150S	EPDM HT	80	VSV150	NO
ME200S	EPDM HT	80	VSV200	YES
ME300S	EPDM HT	80	VSV300	YES
