Stainless steel pressure tanks with replaceable membrane- Working temperature
- Finish
- Rubber membrane

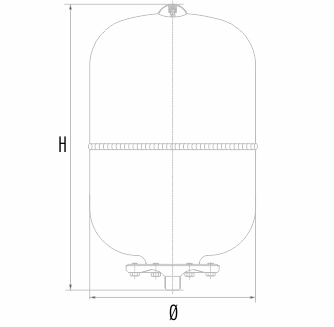

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
Model | H Height | ⌀ Diameter | Maximum working pressure | Standard precharge pressure | Connection |
---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
---|
AX8 | 330 | 200 | 10 | 2.5 | 3/4” |
AX18 | 410 | 270 | 10 | 2.5 | 1” |
AX24 | 510 | 270 | 10 | 2.5 | 1” |
