Stainless steel pressure tanks with replaceable membrane- Working temperature
- Finish
- Rubber membrane

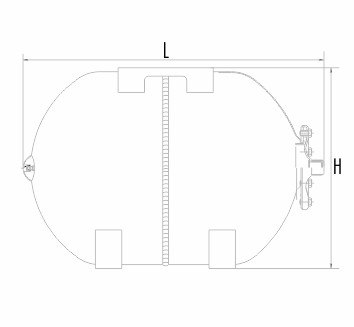

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | L
Length | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| AHX18 | 300 | 410 | 10 | 2.5 | 1” |
| AHX24 | 300 | 510 | 10 | 2.5 | 1” |
| AHX50 | 380 | 570 | 10 | 2.5 | 1” |
| AHX100 | 520 | 685 | 10 | 2.5 | 1” |
