Flat expansion vessels
Working temperature
  • -10°C
  • +90°C
Finish
  • HOT-DIP
    GALVANIZED STEEL
Rubber membrane
  • SBR/BUTILE

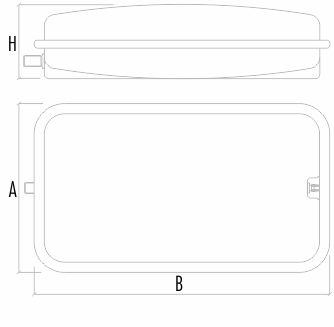

  • Technical drawing
  • View
  • Available upon request, customized executions (ex. water connections, air valve position, precharge pressure etc ...) with minimum quantities to be agreed

    All our vessels are manufactured, tested and checked to satisfy the highest quality standards

ModelH
Height
DimensionsMaximum
working pressure
Standard
precharge pressure
Connection
(mm)(a x b)(bar)(bar)(inches)
VRP250-775250 x 440313/8"
VRP250-1095250 x 440313/4"
VRP250-12110250 x 440313/4"
VRP250-14135250 x 440313/4"
VRP250-16160250 x 440313/4"
