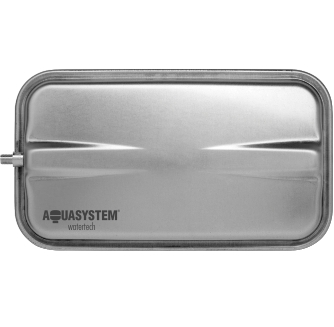

Flat expansion vessels- Working temperature
- Finish
- Rubber membrane
Available upon request, customized executions (ex. water connections, air valve position, precharge pressure etc ...) with minimum quantities to be agreed
All our vessels are manufactured, tested and checked to satisfy the highest
quality standards

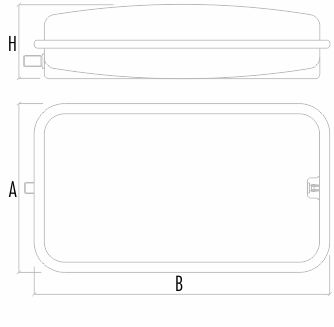

Model | H Height | Dimensions | Maximum working pressure | Standard precharge pressure | Connection |
---|
| (mm) | (a x b) | (bar) | (bar) | (inches) |
---|
VRP205-8 | 110 | 200 x 515 | 3 | 1 | 3/4" |
VRP205-10 | 120 | 200 x 515 | 3 | 1 | 3/4" |
VRP205-12 | 145 | 200 x 515 | 3 | 1 | 3/4" |
