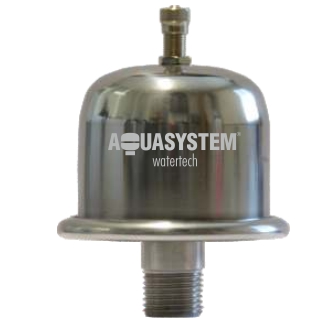

Water shock absorber device- Working temperature
- Finish
- Rubber membrane

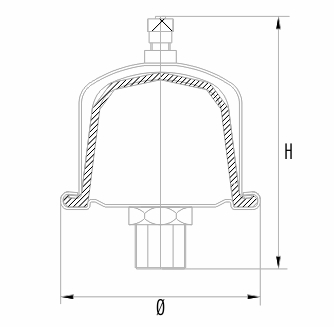

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
Model | H Height | ⌀ Diameter | Maximum working pressure | Standard precharge pressure | Connection |
---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
---|
WSA016 | 100 | 79 | 15 | 3.5 | ½" |
WSA050 | 156 | 95 | 10 | 3.5 | ½" |
WSA100 | 190 | 116 | 10 | 3.5 | ½" |
WSA200 | 220 | 135 | 10 | 3.5 | ½" |
