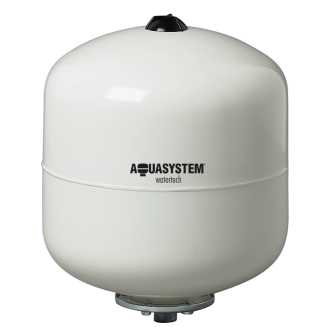

Vasi multifunzione con membrana intercambiabile con staffa a muro- Working temperature
- External finish color
- Rubber membrane

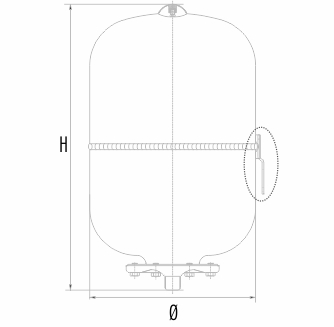

Technical drawing
View- Stainless steel AISI 304 counter flange
- Single packaging
- With pre-welded wall lifting support kit
- 5 years warranty
All our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| ARB8 | 316 | 200 | 10 | 3.5 | 3/4” |
| ARB12 | 295 | 280 | 10 | 3.5 | 3/4” |
| ARB18 | 430 | 280 | 10 | 3.5 | 3/4” |
| ARB24 | 483 | 280 | 10 | 3.5 | 3/4” |
| ARB35 | 440 | 365 | 10 | 3.5 | 1” |
| ARB50 | 565 | 365 | 10 | 3.5 | 1” |
