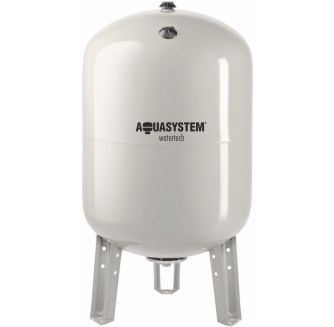

Multifunctional tanks with replaceable membrane- Working temperature
- External finish color
- Rubber membrane

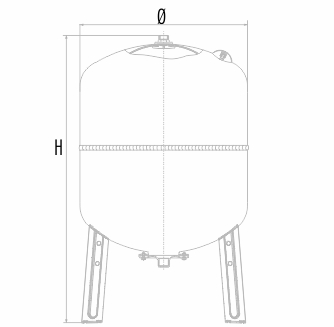

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| AVR50+ | 720 | 365 | 10 | 2.5 | 1” |
| AVR80+ | 856 | 415 | 10 | 2.5 | 1” |
| AVR100+ | 855 | 495 | 10 | 2.5 | 1” |
| AVR150+ | 975 | 550 | 10 | 2.5 | 1” |
| AVR200+ | 1085 | 600 | 10 | 2.5 | 1 ¼ ” |
| AVR300+ | 1240 | 650 | 10 | 2.5 | 1 ¼ ” |
| AVR500+ | 1490 | 750 | 10 | 2.5 | 1 ¼ ” |
