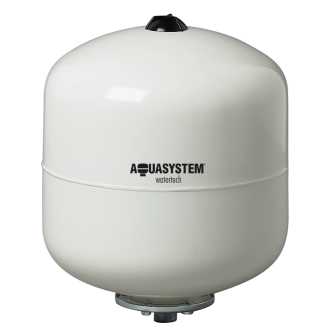

Multifunctional tanks with replaceable membrane- Working temperature
- External finish color
- Rubber membrane

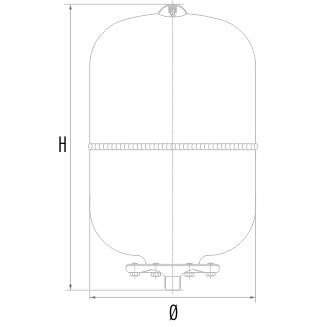

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| AR2 | 240 | 120 | 10 | 3 | ½" |
| AR5 | 300 | 160 | 10 | 2.5 | 3/4” |
| AR8 | 316 | 200 | 10 | 2.5 | 3/4” |
| AR12 | 295 | 280 | 10 | 2.5 | 3/4” |
| AR18 | 430 | 280 | 10 | 2.5 | 3/4” |
| AR24 | 483 | 280 | 10 | 2.5 | 1” |
| AR35 | 440 | 365 | 10 | 2.5 | 1” |
