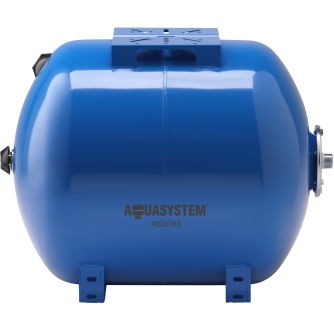

Pressure tanks with replaceable membrane- Working temperature
- External finish color
- Rubber membrane

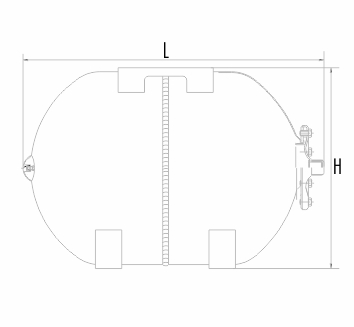

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | L
Length | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| VAO18 | 305 | 430 | 10 | 1.5 | 1” |
| VAO24 | 305 | 483 | 10 | 1.5 | 1” |
| VAO35 | 376 | 440 | 10 | 1.5 | 1” |
| VAO50 | 380 | 585 | 10 | 1.5 | 1” |
| VAO60 | 385 | 665 | 10 | 1.5 | 1” |
| VAO80 | 430 | 725 | 10 | 1.5 | 1” |
| VAO100 | 520 | 685 | 10 | 1.5 | 1” |
| VAO150 | 585 | 820 | 10 | 1.5 | 1” |
| VAO200 | 628 | 920 | 10 | 2 | 1 ¼ ” |
| VAO300 | 680 | 1082 | 10 | 2 | 1 ¼ ” |
