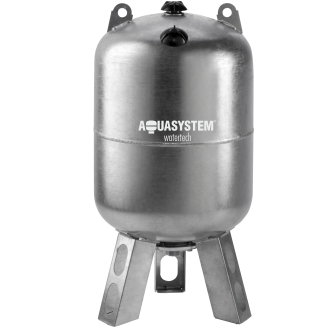

Galvanized steel pressure tanks with replaceable membrane- Working temperature
- Finish
- Rubber membrane

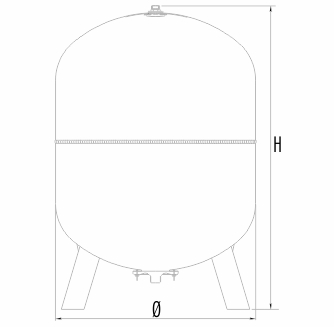

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| AVZ50 | 720 | 365 | 10 | 2 | 1” |
| AVZ60 | 808 | 365 | 10 | 2 | 1” |
| AVZ80 | 856 | 415 | 10 | 2 | 1” |
| AVZ100 | 855 | 495 | 10 | 2 | 1” |
| AVZ150 | 975 | 550 | 10 | 2 | 1” |
| AVZ200 | 1085 | 600 | 10 | 2 | 1 ¼ ” |
| AVZ300 | 1240 | 650 | 10 | 2 | 1 ¼ ” |
| AVZ500 | 1490 | 750 | 10 | 2 | 1 ¼ ” |
