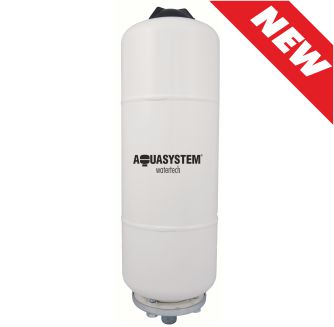

Compact multifunctional tanks with replaceable membrane- Working temperature
- External finish color
- Rubber membrane

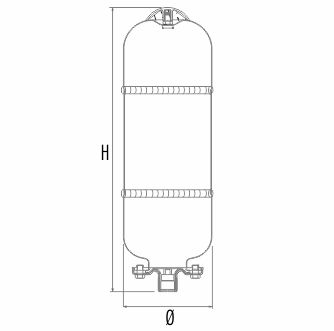

Technical drawing
ViewAll our vessels are manufactured, tested and checked according to current European regulations
| Model | H
Height | ⌀
Diameter | Maximum
working pressure | Standard
precharge pressure | Connection |
|---|
| (mm) | (mm) | (bar) | (bar) | (inches) |
|---|
| ARC08-1 | 270 | 80 | 10 | 2.5 | ½" |
| ARC08-2 | 455 | 80 | 10 | 2.5 | ½" |
| ARC09-3 | 560 | 90 | 10 | 2.5 | ½" |
| ARC09-4 | 655 | 90 | 10 | 3.5 | ½" |
| ARC12-6 | 600 | 120 | 10 | 3.5 | ½" |
| ARC16-8 | 515 | 160 | 10 | 3.5 | ½" |
